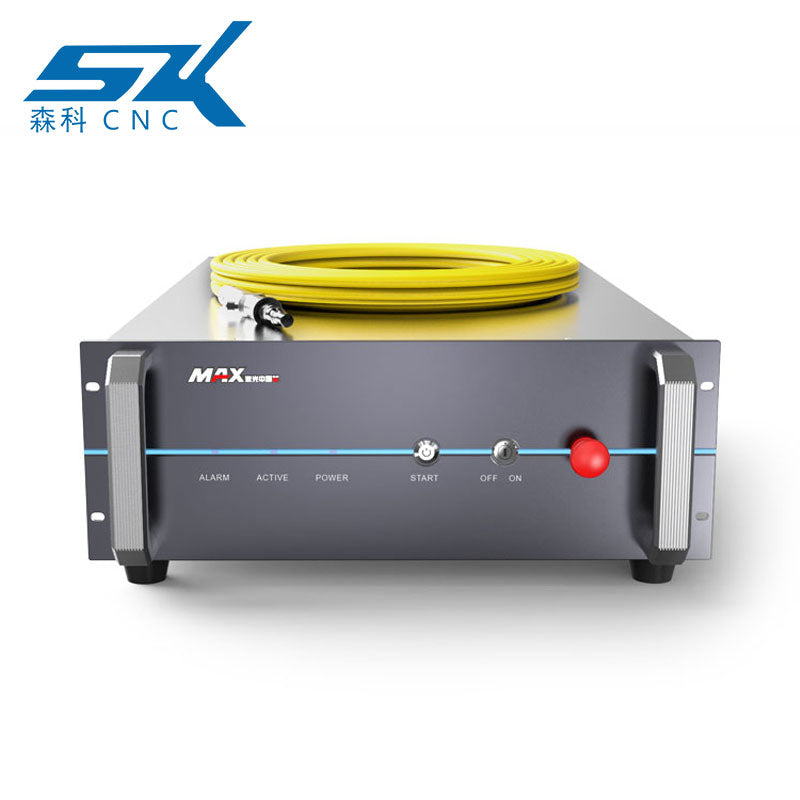

MAX 1kw 2kw 3kw Fiber Laser Source
MAX 1kw 2kw 3kw Fiber Laser Source
Model |
MFSC-1000W |
MFSC-1200W |
MFSC-1300W |
MFSC-1500W |
Output Power(W) |
1000 |
1200 |
1300 |
1500 |
Operating Mode |
Continuous/ Pulse |
|||
Power Adjust Range(%) |
10-100 |
|||
Wavelemgth (nm) |
1080(±10) |
|||
Spectral Bandwidth (nm) |
3-5 |
|||
Laser Beam Quality(M2) |
1.3 (20u-QBH) / 2.8 (50u-QBH) |
|||
Laser on time(μs) |
50-80 |
|||
Laser off time(μs) |
30-50 |
|||
Modulation Power(KHz) |
20-50 |
|||
Output Optical Cable Parameters |
||||
Output Mode |
QBH(LOC) |
|||
Fiber Cable Length(m) |
15 |
|||
Fiber Core Diameter(μm) |
50( 30/100 optional) |
|||
Bending Radius(mm) |
200 |
|||
Electrical Parameters |
||||
Voltage(VAC) |
220 |
|||
Rated Power Consumption(KW) |
3.5 |
4.8 |
5.2 |
6.0 |
Other Parameters |
||||
Relative Humidity(%) |
10-85 |
|||
Cooling Method |
Water Cooling |
Key Features:
Versatile Power Options: Choose the optimal power level for your specific needs – 1kW, 2kW, or 3kW.
Cutting-Edge Technology: Our fiber laser sources leverage cutting welding edge technology to ensure superior beam quality and consistent performance.
Precision and Accuracy: Achieve precise cuts with remarkable accuracy, thanks to advanced control systems and state-of-the-art optics.
Model |
MFSC-2000 |
MFSC-3000 |
Optica Properties |
||
Average Output Power (W) |
2000 |
3000 |
Cetral Wavelength (nm) |
1080±5 |
|
Max Modulation Frequency (kHz) |
5 |
|
Output Power Stability |
±1.5% |
|
Red Laser |
Yes |
|
Output Characteristics |
||
Output Connector |
QBH (customizable) |
|
Beam Quality |
5-7(50um) |
|
Polarization State |
random |
|
Output fiber length (m) |
20 (customizable) |
|
Electronic Control Characteristics |
||
Input Power (V AC) |
380±10%, three phase-four wire connet |
|
Control Mode |
RS232, AD |
|
Power Adjustment Range (%) |
10-100 |
|
Other Characteristics |
||
Cooling method |
Water Cooling |
|
Working Temperature (℃) |
10-40 |
Reliable and Efficient: Built for durability, these laser sources offer reliable operation and energy-efficient performance, contributing to cost-effectiveness.
Broad Application Range: From metal cutting to engraving, our fiber laser sources cater to a wide spectrum of industrial applications.
User-Friendly Interface: Intuitive controls make operation seamless, ensuring ease of use for both experts and novices.
Elevate your industrial processes with the power and precision of our High-Power Fiber Laser Sources. Explore the future of laser technology today.
