6kW 12kW 15kW 20kW 30kW Max fiber laser power source
6kW 12kW 15kW 20kW 30kW Max fiber laser power source

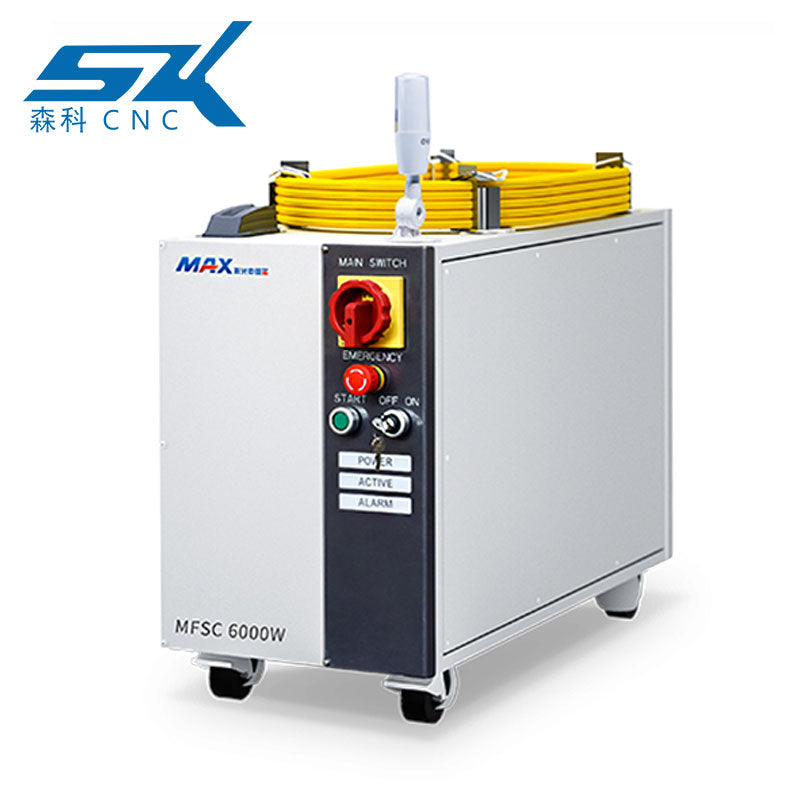

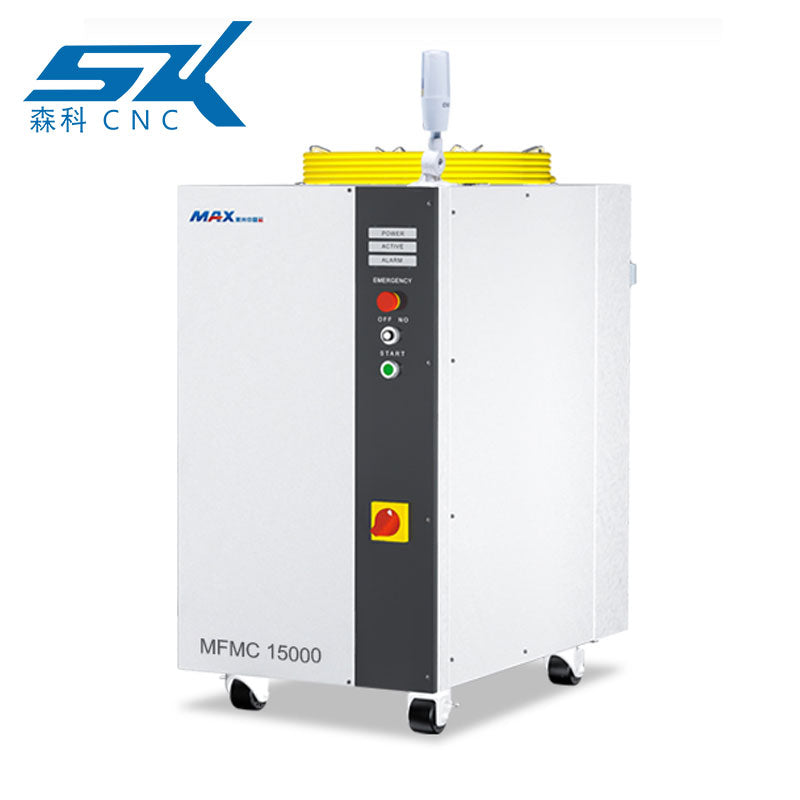

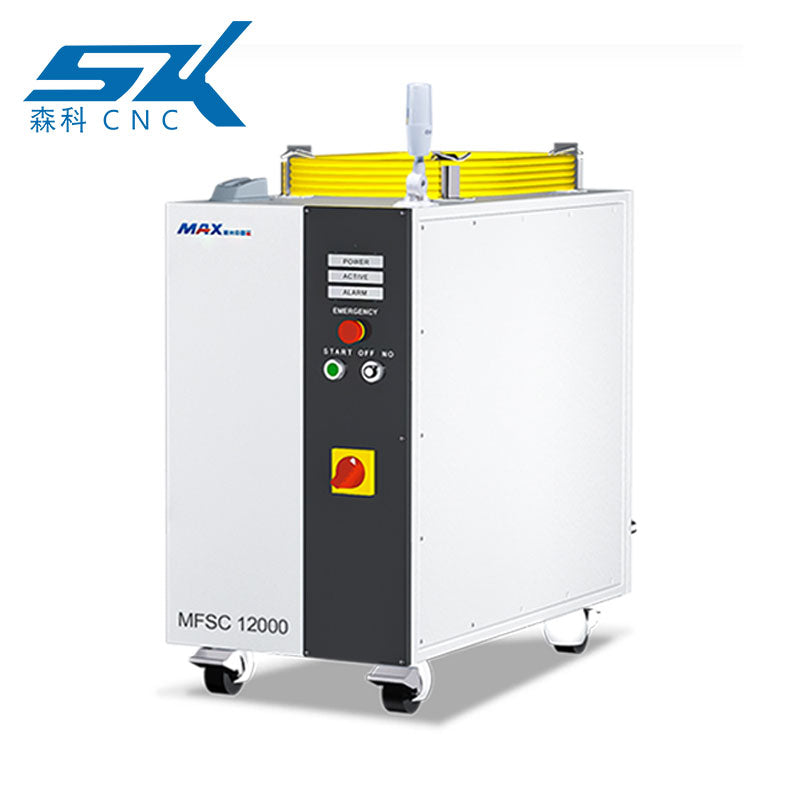

Designed for optimal functionality, the 6kW variant offers reliable performance, while the 12kW model steps up the game with increased power for enhanced cutting capabilities. Stepping into higher capacities, our 15kW and 20kW units provide even greater versatility, ensuring efficient processing across various materials.
Models |
MFMC-6000W |
MFMC-12000W |
MFMC-15000W |
MFMC-20000W |
OPTICAL SPECIFICATIONS |
||||
Nominal Power |
6000W |
12000W |
15000W |
20000W |
Mode of Operation |
CW/Modulated |
|||
Polarization |
Random |
|||
Power Tunability |
10 to 100% |
|||
Wavelengtf |
1080±5nm |
|||
Power Stability |
±1% |
|||
Laser Beam Quality,BPP |
3.5 to 4.5 mmxmrad (100μmQBH) |
|||
5 to 6.5 mmxmrad (150μmQBH |
||||
6.5 to 9 mmxmrad (200μmQBH |
||||
Modulation Frequency |
≤5kHz |
|||
Preview Red Light Power |
200 μW |
|||
FIBER DELIVERY SYSTEM |
||||
Interface |
QBH |
LOE |
||
Length |
20m standard,other lengths optiona |
|||
Diameter |
100/150/200 μm |
150/200 μm |
||
Bending Radius |
200 mm |
|||
ELECTRICAL RATINGS |
||||
Supply Voltage |
400(-15%to+10%)VAC 3-phase |
|||
OTHER SPECIFICATIONS |
||||
Operating Temperature |
+10 to+40℃ |
|||
Storage Temperature |
10 to +60℃ |
|||
Humidity |
10 to 80% |
|||
Cooling Method |
Water Cooling |
|||
Cooling Medium |
Distilled water/Glycol Antifreeze |
|||
Dimension |
1050×1385×1658 mm |
|||
Weight |
534(±4)kg |
646(±5)kg |
726(±5)kg |
815(±5)kg |

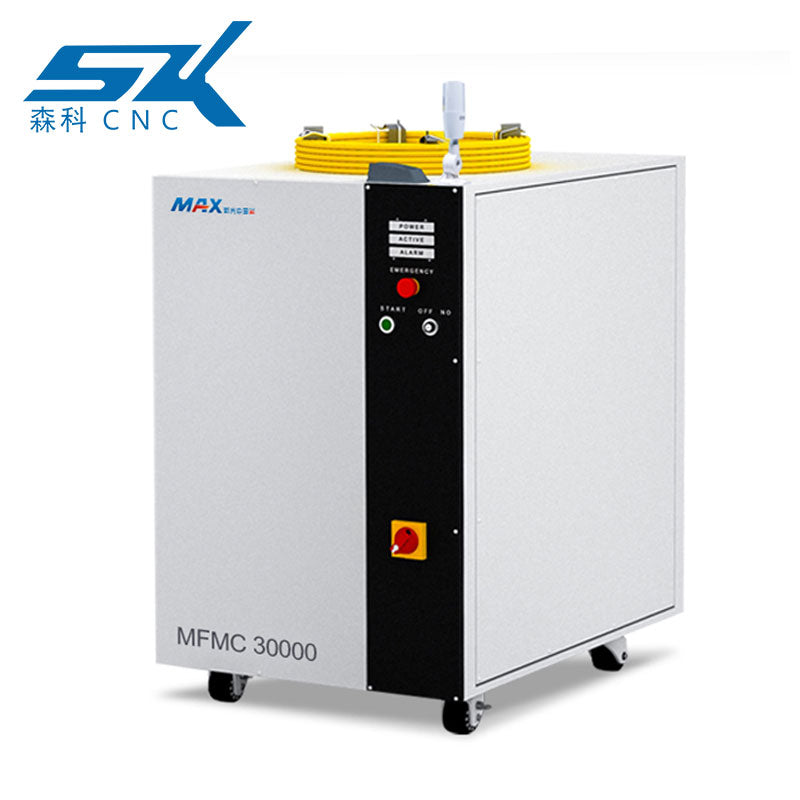

At the top of our lineup, the 30kW Max fiber laser stands as a pinnacle of innovation, pushing boundaries in laser cutting capabilities. With advanced features and robust construction, it caters to the most demanding industrial applications, delivering exceptional speed and precision.
Each power source in our Max series exemplifies durability, cutting-edge technology, and a commitment to performance excellence. Elevate your operations with our range of fiber laser power sources – where power meets precision.
